常规带通滤光片

上架时间：2023-11-09
浏览次数：67
产品类型：激光相关,成像应用,光度色度,光谱应用,光电传感器
产品颜色：红外类,可见光类,紫外类
产品价格：￥
马上咨询
产品详情

Alluxa多波段滤光片：OD3-OD10，波段覆盖310-6000nm


ULTRA系列型号带通滤光片设计具有陡峭边缘、高透射率和高达OD10的设计阻挡，中心波长范围覆盖310-6000nm。它们是荧光显微镜、流式细胞术、荧光成像和许多其他应用的理想选择。ULTRA系列带通滤光片的标准品与层压滤光片价格差不多，但能提供大于90%的透射率和大于OD4的阻塞级别。除了带通滤光片以外，Alluxa还供应单波段、多波段、宽带、超窄和窄带滤波器。


Alluxa的ULTRA系列硬涂层薄膜光学带通滤光片结合了精确的波长控制、超陡边缘、深度阻挡和业界最高的传输水平，使用起来将可以优化各种仪器的性能。每个ULTRA系列带通滤波器都希望能够超越最先进仪器的要求。所有出产产品都经过严格测试，以确保过滤器性能达到甚至超过最具挑战性的规格。


  可接受定制，根据您系统的波长范围和要求，以满足以下一项或多项具有挑战性的规格：

●可见光范围内的通带传输率高达99%

●通过设计实现高达OD10的宽范围带外阻塞

●从50%T到OD6的边缘过渡高达CWL的0.5%

●从紫外到中红外（~250nm到13µm）的任何波长的CWL

●波长精度误差为CWL的±0.25%

●在632.8nm处测量的TWE低至0.01λRMS/英寸


      ULTRA系列多波段滤光片可以设计成超过10个传输波段，波段之间的阻隔大于OD8，边缘陡峭，通光率高达98%。这款滤光片非常适合在需要同时检测单个样品中的多个荧光团的荧光技术中用作激发或发射滤光片。

Alluxa带通滤光片，波段覆盖310-6000nm，并分为5类，分别为：单波段，双波段，三波段，四波段和五波段。

以型号：310-10 OD4为例，产品型号命名规则通常为：310-10 OD4，310代表该产品的中心波段，10代表半峰宽，OD4为截止率能达到10^-4。

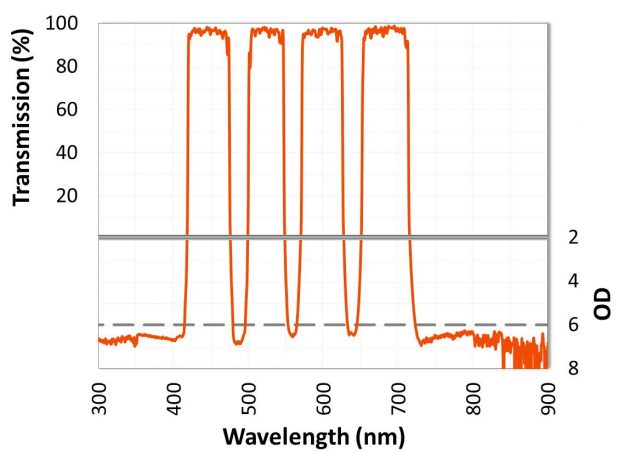

用于荧光应用的多波段带通滤光片光谱图：具有陡峭边缘、高透射率和OD6带外阻塞的ULTRA系列多频带滤波器。

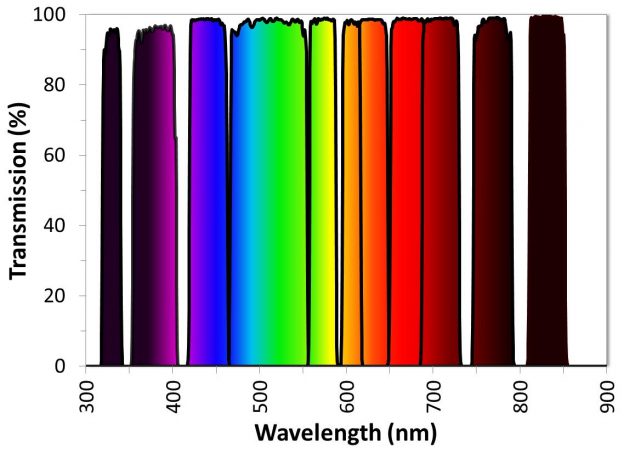

各种ULTRA系列带通滤光片显示从紫外到红外的高透射率




薄膜涂层工艺的质量和一致性：ULTRA系列滤光片的波长控制、透射和阻塞等级在几个不同的涂层运行中具有高度可重复性。



标准常规带通滤光片型号及参数：

单带通滤光片

品名
型号中心波长
透过率半高宽带阻尺寸
310-10 OD47365310±2.9nm＞70%@310nm10±2.0nmOD4@200 to 295nm,325 to 1200nm
φ25.0mm
330-95 OD47663330±6.0nm87nm＞70%95±6.0nmOD4@200 to 270nm,405 to 650nm
φ25.0mm
322-22 OD6
7679332±1.0nm324 to 340nm＞85%22nm nominalOD6@250 to 311nm,354 to 400nm; OD5@400 to 450nm; OD4@ 450 to 850nm
φ25.0mm
369.5-39 OD67170369.5±1.0nm352 to 387nm＞95%39nm nominalOD6@250 to 342nm,394 to 800nm; OD5@800 to 1100nm;φ25.0mm
375-10 OD47372375 ±2.0nm＞85%@375nm10±2.0nmOD4@200 to 360nm,390 to 1200nφ25.0mm
377-50 OD67159377 ±3.0nm355 to 399nm＞93%50nm nominalOD6@200 to 344nm,417 to 477nm; OD4@477 to 700nm; OD2@700 to 925nm;φ25.0mm
385.5-28 OD67187385.5 ±1.0nm374 to 397nm＞95%28nm nominalOD6@325 to 360nm,410 to 510nm; OD5@300 to 325nm,510 to 700nm; OD2@700 to 1000nm;φ25.0mm
389-24 OD67202389 ±1.5nm379 to 401nm＞95%24nm nominalOD6@330 to 370nm,408 to 470nm; OD5@200 to 330nm,470 to 1000nmφ25.0mm
395-24 OD67233395 ±1.5nm385 to 405nm＞95%24nm nominalOD6@300 to 369nm,421 to 700nm; OD4@700 to 800nm; OD2@800 to 950nmφ25.0mm
400-10 OD47374400 ±2.0nm＞90%@400nm10±2.0nmOD4@200 to 385nm,415 to 1200nmφ25.0mm
405-10 OD47377405 ±2.0nm＞90%@405nm10±2.0nmOD4@200 to 390nm,420 to 1200nmφ25.0mm
413-10 OD47378413 ±2.0nm＞90%@413nm10±2.0nmOD4@200 to 400nm,430 to 1200nmφ25.0mm
420-10 OD47379420 ±2.0nm＞90%@420nm10±2.0nmOD4@200 to 405nm,435 to 1200nmφ25.0mm
425-50 OD47382425±5.0nm45nm＞90%50±5.0nmOD4@200 to 390nm,460 to 1200nmφ25.0mm
430-10 OD47383430 ±2.0nm＞90%@430nm10±2.0nmOD4@200 to 415nm,445 to 1200nmφ25.0mm
430-41 OD67218430 ±1.5nm412 to 448nm＞95%41nm nominalOD6@300 to 399nm,461 to 900nmφ25.0mm
434-20 OD67232434 ±1.5nm426 to 442nm＞95%20nm nominalOD6@200 to 410nm,453 to 1000nm;OD3@1000 to 1100nmφ25.0mm
438-29 OD67193438 ±1.5nm425 to 452nm＞95%29nm nominalOD6@250 to 415nm,460 to 600nm;OD5@600 to 720nm; OD4@720 to 920nm;OD3@920 to 1000nm;OD2@1000 to 1100nmφ25.0mm
440-10 OD47385440 ±2.0nm＞90%@440nm10±2.0nmOD4@200 to 425nm,455 to 1200nmφ25.0mm
447-60 OD67160447 ±3.0nm420 to 474nm＞93%60nm nominalOD6@403 to 407nm,;OD5@350 to 407nm; 485 to 700nm; OD3@700 to 950nm;φ25.0mm
448-63 OD67570448 ±1.5nm419 to 476nm＞95%63nm nominalOD6@350 to 410nm,486 to 1000nm;φ25.0mm
450-10 OD47388450 ±2.0nm＞90%@450nm10±2.0nmOD4@200 to 435nm,465 to 1200nmφ25.0mm
460-10 OD47393460 ±2.0nm＞90%@460nm10±2.0nmOD4@200 to 445nm,475 to 1200nmφ25.0mm
466-44 OD67646466 ±1.5nm446 to 486nm＞95%44nm nominalOD6@200 to 435nm,497 to 670m; OD3@670 to 1100nmφ25.0mm
470-10 OD47394470 ±2.0nm＞90%@470nm10±2.0nmOD4@200 to 455nm,485 to 1200nmφ25.0mm
472-32 OD67098472 ±1.5nm458 to 486nm＞95%32nm nominalOD6@250 to 442nm,498 to 775m; OD4@775 to 925nm;OD2@925 to 1100nmφ25.0mm
473-27 OD67116473 ±1.5nm462 to 484nm＞95%27nm nominalOD6@526 to 700nm; OD5@200 to 441.5nm,492 to 526nm;OD3@700 to 900nm;OD2@900 to 1100nmφ25.0mm
475-24 OD67197475 ±1.5nm465 to 485nm＞95%24nm nominalOD6@300 to 453nm,497 to 700nm; φ25.0mm
475-28 OD67607475 ±1.5nm463 to 487nm＞95%28nm nominalOD6@300 to 449nm,502 to 700nm; OD3@700 to 950nm;φ25.0mm
475-34 OD67591475 ±1.5nm461 to 489nm＞95%34nm nominalOD6@300 to 440nm,500 to 700nm; OD4@700 to 900nm;OD3@900 to 1000nm;OD2@1000 to 1100nmφ25.0mm
477-31 OD67101477 ±3.0nm464 to 490nm＞93%31nm nominalOD6@300 to 451nm,503 to 710nm; φ25.0mm
480-10 OD47398480 ±2.0nm＞90%@480nm10±2.0nmOD4@200 to 465nm,495 to 1200nmφ25.0mm
483-40 OD67123483 ±1.5nm465 to 501nm＞95%40nm nominalOD6@300 to 450nm,507 to 850nm; OD4@850 to 1100nmφ25.0mm
483.5-25 OD67217483.5 ±1.5nm473 to 494nm＞95%25nm nominalOD6@300 to 463nm,504 to 1100nm; φ25.0mm
485-24 OD67171485 ±1.5nm475 to 495nm＞95%24nm nominalOD6@300 to 460nm,510 to 800nm; OD5@800 to 1100nm;OD4@1000 to 1100nm;OD3@1100 to 1200nmφ25.0mm
488-10 OD47400488 ±2.0nm＞90%@488nm10±2.0nmOD4@200 to 473nm,503 to 1200nmφ25.0mm
492-10 OD47401492 ±2.0nm＞90%@492nm10±2.0nmOD4@200 to 477nm,507 to 1200nmφ25.0mm
494-21 OD67188494 ±1.5nm485 to 503nm＞95%21nm nominalOD6@300 to 473nm,518 to 680nm; OD4@680 to 750nm;OD2@750 to 1150nmφ25.0mm
500-10 OD47402500 ±2.0nm＞90%@500nm10±2.0nmOD4@200 to 485nm,515 to 1200nmφ25.0mm
500-20 OD67625500 ±1.5nm492 to 508nm＞95%20nm nominalOD6@250 to 479nm,522 to 850nm; OD5@850 to 1050nmφ25.0mm
500-25 OD47403500 ±3.0nm20nm＞90%25±3.0nmOD4@200 to 447nm,523 to 1200nmφ25.0mm
500-30 OD67164500 ±3.0nm488 to 512nm＞93%30nm nominalOD6@250 to 473nm,525 to 670nm; OD4@670 to 980nm;OD2@980 to 1100nmφ25.0mm
510-10 OD47407510 ±2.0nm＞90%@510nm10±2.0nmOD4@200 to 495nm,525 to 1200nmφ25.0mm
513-22 OD67231513 ± 1.5nm504 to 522nm＞95%22nm nominalOD6@400 to 492nm,534 to 700nm; OD5@200 to 400nm，700 to 750nm;OD2@750 to 900nmφ25.0mm
513-29 OD67130513 ± 1.5nm501 to 525nm＞95%29nm nominalOD6@350 to 495nm,531 to 1000nm; φ25.0mm
520-10 OD47409520 ±2.0nm＞90%@520nm10±2.0nmOD4@200 to 505nm,535 to 1200nmφ25.0mm
520-40 OD67115520 ± 1.5nm502 to 538nm＞95%40nm nominalOD6@250 to 488nm,435 to 488nm,560 to 700nm; OD5@700 to 925nm; OD2@925 to 1025nmφ25.0mm
521.5-35 OD67750521.5 ± 1.5nm506 to 537nm＞95%35nm nominalOD6@350 to 499nm,544 to 900nmφ25.0mm
524-32 OD67220524 ± 1.5nm510 to 538nm＞95%32nm nominalOD6@300 to 498nm,550 to 800nm; OD4@800 to 1000nm; OD2@1000 to 1100nmφ25.0mm
525-50 OD67647525 ± 1.5nm502.5 to 547.5nm＞95%50nm nominalOD6@200 to 490nm,561 to 745nm; OD3@745 to 1100nmφ25.0mm
526-23 OD77751526 ± 1.5nm517 to 535nm＞95%23nm nominalOD7(By design):350 to 510nm,542 to 925nmφ25.0mm
526-52 OD67592526 ± 1.5nm503 to 549nm＞95%52nm nominalOD6@300 to 498nm,554 to 1000nmφ25.0mm
527-22 OD67674527 ± 1.5nm518 to 536nm＞95%22nm nominalOD6@250 to 511nm,544 to 750nm; OD5@750 to 925nm; OD3@925 to 1100nmφ25.0mm
528-47 OD67219528 ± 1.5nm507 to 549nm＞95%47nm nominalOD6@300 to 494nm,562 to 710nmφ25.0mm
531.5-39 OD67141531.5± 3.0nm515 to 548nm＞93%39nm nominalOD6@360 to 400nm,400 to 496nm, 564 to 850nm; OD3@300 to 360nm, 850 to 1000nmφ25.0mm
532-10 OD47412532 ±2.0nm＞90%@532nm10±2.0nmOD4@200 to 517nm,547 to 1200nmφ25.0mm
534-23 OD67182534 ± 1.5nm525 to 543nm＞95%23nm nominalOD6@300 to 510nm,555 to 725nm; OD5@250 to 300nm,725 to 930nm; OD2@930 to 1100nmφ25.0mm
538-47 OD67122538 ± 1.5nm517 to 559nm＞95%47nm nominalOD6@300 to 507nm, 570 to 850nm; OD4@850 to 1100nmφ25.0mm
540-10 OD47414540 ±2.0nm＞90%@540nm10±2.0nmOD4@200 to 525nm,555 to 1200nmφ25.0mm
540-20 OD67701540 ± 1.5nm532 to 548nm＞95%20nm nominalOD6@250 to 524nm,557 to 1100nmφ25.0mm
544-33 OD67165544 ± 3.0nm530 to 558nm＞93%33nm nominalOD6@380 to 519nm,567 to 770nm; OD5@380 to 519nm,567 to 770nmφ25.0mm
544.5-23 OD67114544.5± 1.5nm535 to 554nm＞95%23nm nominalOD6@300 to 520nm,563 to 1100nmφ25.0mm
546-22 OD67128546 ± 1.5nm537 to 555nm＞95%22nm nominalOD6@350 to 533nm,559 to 1000nmφ25.0mm
549-22 OD67175549 ± 1.5nm541 to 557nm＞95%21nm nominalOD6@300 to 526nm,571 to 800nm; OD3@800 to 1200nmφ25.0mm
550-10 OD47416550±2.0nm＞90%@550nm10±2.0nmOD4@200 to 535nm,565 to 1200nmφ25.0mm
560-10 OD47418560±2.0nm＞90%@560nm10±2.0nmOD4@200 to 545nm,575 to 1200nmφ25.0mm
560-32 OD67096546 ± 1.5nm546 to 574nm＞95%32nm nominalOD6@500 to 531nm,589 to 670nm; OD5@250 to 500nm,670 to 925nm; OD2@925 to 1100nmφ25.0mm
560-40 OD77753560 ± 1.5nm542 to 578nm＞95%40nm nominalOD7(By design):250 to 532nm,589 to 1000nmφ25.0mm
562.5-35 OD67752562.5± 1.5nm547 to 578nm＞95%35nm nominalOD6@350 to 541nm,585 to 900nmφ25.0mm
568-10 OD47420568±2.0nm＞90%@568nm10±2.0nmOD4@200 to 553nm,583 to 1200nmφ25.0mm
571-26 OD67758571 ± 1.5nm560 to 582nm＞95%26nm nominalOD6@370 to 555nm,588 to 775nm; OD5@775 to 870nmφ25.0mm
572-30 OD67210572 ± 2.0nm559 to 585nm＞95%30nm nominalOD6@250 to 547nm,597 to 925nm;  OD2@925 to 1120nmφ25.0mm
575-29 OD67222575 ±  1.5nm564 to 586nm＞95%29nm nominalOD6@300 to 551nm,599 to 925nm;  OD4@925 to 1120nmφ25.0mm
575-32 OD67322575 ± 1.5nm562 to 588nm＞95%32nm nominalOD6@300 to 546nm,604 to 800nm; OD5@800 to 925nm; OD4@925 to 1200nmφ25.0mm
576-23 OD67127576 ± 1.5nm567 to 585nm＞95%23nm nominalOD6@350 to 562nm,591 to 900nmφ25.0mm
580-10 OD47423580 ± 2.0nm＞90%@580nm10±2.0nmOD4@200 to 565nm,595 to 1200nmφ25.0mm
583-28 OD67139583 ± 1.5nm571 to 594nm＞95%28nm nominalOD6@480 to 564nm,604 to 680nm; OD4@350 to 480nm; OD3@680 to 950nmφ25.0mm
586-25 OD67189586 ± 1.5nm576 to 596nm＞95%25nm nominalOD6@300 to 561nm,610 to 780nm; OD4@250 to 300nm,780 to 930nm; OD2@930 to 1120nmφ25.0mm
586-45 OD67142588 ± 3.0nm568 to 608nm＞93%45nm nominalOD5@300 to 555nm,621 to 900nmφ25.0mm
580-10 OD47424589 ± 2.0nm＞90%@580nm10±2.0nmOD4@200 to 574nm,604 to 1200nmφ25.0mm
595-50 OD67113595 ± 1.5nm572 to 618nm＞95%50nm nominalOD6@300 to 563nm,635 to 800nm; OD4@800 to 1000nm; OD3@1000 to 1100nmφ25.0mm
600-10 OD47426600 ± 2.0nm＞90%@600nm10±2.0nmOD4@200 to 585nm,615 to 1200nmφ25.0mm
604-50 OD67224604 ± 2.0nm582 to 626nm＞95%50nm nominalOD6@300 to 569nm,640 to 900nmφ25.0mm
607-40 OD67147607 ± 3.0nm590 to 624nm＞93%40nm nominalOD6@250 to 574nm,647 to 925nm; OD2@940 to 1000nmφ25.0mm
610-10 OD47429610 ± 2.0nm＞90%@610nm10±2.0nmOD4@200 to 595nm,625 to 1200nmφ25.0mm
612-36 OD77756612 ± 2.0nm596 to 628nm＞95%36nm nominalOD7(By design):250 to 589nm,635 to 1000nmφ25.0mm
614-26 OD67629614 ± 2.0nm603 to 625nm＞95%26nm nominalOD6@350 to 597nm,631 to 1000nmφ25.0mm
614-54 OD67703614 ± 2.0nm590 to 638nm＞95%54nm nominalOD6@350 to 580nm,647 to 875nmφ25.0mm
620-10 OD47430620 ± 2.0nm＞90%@620nm10±2.0nmOD4@200 to 605nm,635 to 1200nmφ25.0mm
620-31 OD67133620 ± 2.0nm607 to 633nm＞95%31nm nominalOD6@350 to 602nm,639 to 1000nmφ25.0mm
622-25 OD67593622 ± 2.0nm612 to 632nm＞95%25nm nominalOD6@350 to 605nm,639 to 1000nmφ25.0mm
622-36 OD67152622 ± 2.0nm606 to 638nm＞95%36nm nominalOD6@360 to 588nm,656 to 850nm; OD3@300 to 360nm, 850 to 1000nmφ25.0mm
622-40 OD67676622 ± 2.0nm605 to 639nm＞95%40nm nominalOD6@200 to 593nm,651 to 850nm; OD3@850 to 1100nmφ25.0mm
625-32 OD67140625 ± 2.0nm611 to 639nm＞95%32nm nominalOD6@300 to 599nm,649 to 900nm; OD5@300 to 599nm,649 to 900nmφ25.0mm
625-45 OD67208625 ± 2.0nm605 to 645nm＞95%45nm nominalOD6@300 to 592nm,660 to 800nmφ25.0mm
628-37 OD67144628 ± 2.0nm612 to 644nm＞95%37nm nominalOD6@250 to 598nm,659 to 925nm; OD3@925 to 1100nmφ25.0mm
632-10  OD47433632 ± 2.0nm＞90%@632nm10±2.0nmOD4@200 to 617nm,647 to 1200nmφ25.0mm
632-22 OD67696632 ± 2.0nm623 to 641nm＞95%22nm nominalOD6@300 to 607nm,657 to 850nm; OD4@850 to 925nm; OD2@925 to 1100nmφ25.0mm
635-22 OD67183635 ± 2.0nm626 to 644nm＞95%22nm nominalOD6@300 to 610nm,660 to 850nm; OD4@850 to 925nm; OD2@925 to 1100nmφ25.0mm
640-10  OD47433640 ± 2.0nm＞90%@640nm10±2.0nmOD4@200 to 625nm,655 to 1200nmφ25.0mm
640-19 OD67594640 ± 2.0nm633 to 647nm＞95%19nm nominalOD6@250 to 625nm,655 to 925nm; OD2@925 to 1100nmφ25.0mm
640-77 OD67095640 ± 3.5nm605 to 675nm＞93%77nm nominalOD6@542 to 582nm; OD5@490 to 592nm,696 to 925nm; OD2@400 to 490nm,925 to 1050nm; OD1@1050 to 1100nm, 200 to 400nmφ25.0mm
647-10  OD47436647 ± 2.0nm＞90%@647nm10±2.0nmOD4@200 to 632nm,662 to 1200nmφ25.0mm
650-10  OD47437650 ± 2.0nm＞90%@650nm10±2.0nmOD4@200 to 635nm,665 to 1200nmφ25.0mm
640-20 OD67203650 ± 2.0nm642 to 658nm＞95%20nm nominalOD6@300 to 629nm, 671 to 925nm; OD3@925 to 1100nmφ25.0mm
652.5-15 OD67697652.5 ± 2.0nm647 to 658nm＞95%15nm nominalOD6@510 to 637nm, 668 to 750nm; OD5@200 to 510nm,750 to 1020nmφ25.0mm
660-10  OD47441660 ± 2.0nm＞90%@660nm10±2.0nmOD4@200 to 645nm,675 to 1200nmφ25.0mm
664-24 OD67136664 ± 2.0nm654 to 674nm＞95%24nm nominalOD6@350 to 649nm, 679 to 1000nmφ25.0mm
666-33 OD67723666 ± 2.0nm652 to 680nm＞95%33nm nominalOD6@350 to 640nm, 689 to 800nm; OD@800 to 850nmφ25.0mm
668.5-30 OD67153668.5 ± 2.0nm656 to 681nm＞95%30nm nominalOD6@360 to 575nm, 575 to 636nm,699 to 850nm; OD3@300 to 360nm,850 to 1000nmφ25.0mm
671-10  OD47442671 ± 2.0nm＞90%@671nm10±2.0nmOD4@200 to 656nm,686 to 1200nmφ25.0mm
677-23 OD67155677 ± 3.5nm668 to 686nm＞95%23nm nominalOD6@360 to 648nm, 703 to 800nm,800 to 850nm; OD3@300 to 360nm,850 to 1000nmφ25.0mm
680-10  OD47446680 ± 2.0nm＞90%@680nm10±2.0nmOD4@200 to 665nm,695 to 1200nmφ25.0mm
680-30 OD67230680 ± 2.0nm668 to 693nm＞95%30nm nominalOD6@300 to 650nm, 710 to 900nmφ25.0mm
683-39 OD67145683 ± 2.0nm666 to 700nm＞95%39nm nominalOD6@300 to 653nm, 714 to 775nmφ25.0mm
690-10  OD47448690 ± 2.0nm＞90%@690nm10±2.0nmOD4@200 to 675nm,705 to 1200nmφ25.0mm
692-46 OD67642692 ± 2.0nm672 to 712nm＞95%46nm nominalOD6@520 to 660nm,725 to 900nm; OD5@900 to 980nm; OD3@250 to 520nm; OD2@980 to 1100nmφ25.0mm
700-10  OD47450700 ± 2.0nm＞90%@700nm10±2.0nmOD4@200 to 685nm,715 to 1200nmφ25.0mm
710-47 OD67135710 ± 2.0nm689 to 731nm＞95%47nm nominalOD6@350 to 683nm,737 to 1000nmφ25.0mm
722.5-30 OD67156722.5 ±3.5nm710 to 735nm＞95%30nm nominalOD6@360 to 625nm,753 to 850nm; OD3@300 to 360nm; 850 to 1000nmφ25.0mm
728-60 OD67681728 ±3.5nm702 to 754nm＞95%60nm nominalOD6@350 to 653nm; OD3@765 to 960nmφ25.0mm
740.5-35 OD67149740.5 ±2.0nm725 to 756nm＞95%35nm nominalOD6@360 to 704nm,776 to 850nm; OD3@300 to 360nm; 850 to 1000nmφ25.0mm
747.5-12 OD67207747.5 ±2.0nm744 to 751nm＞95%12nm nominalOD6@300 to 727nm,768 to 850nm; OD4@850 to 925nm; OD2@ 925 to 1100nmφ25.0mm
780-10  OD47463780 ± 2.0nm＞90%@780nm10±2.0nmOD4@200 to 765nm,795 to 1200nmφ25.0mm
800-25 OD47466800 ±3.0nm20nm＞90%60nm nominalOD4@200 to 773nm,827 to 1200nmφ25.0mm
801.5-50 OD67150801.5 ±2.5nm779 to 823nm＞95%50nm nominalOD6@360 to 675nm,675 to 756nm,844 to 950nm; OD3@300 to 360nm; 950 to 1000nmφ25.0mm
840-50 OD67609840 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 800nm,885 to 1200nmφ25.0mm
850-25 OD47474850 ±3.0nm20nm＞90%25±3.0nmOD4@200 to 822nm,878 to 1200nmφ25.0mm
880-10  OD47479880 ± 2.0nm＞90%@880nm10±2.0nmOD4@200 to 865nm,895 to 1200nmφ25.0mm
890-50 OD47598890 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 850nm,935 to 1200nmφ25.0mm
900-50 OD47481900 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 860nm,945 to 1200nmφ25.0mm
925-50 OD47484925 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 885nm,970 to 1200nmφ25.0mm
940-10  OD47485940 ± 2.0nm＞90%@940nm10±2.0nmOD4@200 to 925nm,955 to 1200nmφ25.0mm
970-50 OD47558970 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 930nm,1015 to 1200nmφ25.0mm
975-50 OD47490975 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 935nm,1020 to 1200nmφ25.0mm
1047.5-15  OD475951047.5 ± 2.0nm＞90%@1047.5nm15±2.0nmOD6@1064.1nm; OD4@200 to 1027nm,1068 to 1200nmφ25.0mm
1050-50 OD474961050 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 1010nm,1095 to 1500nmφ25.0mm
1064-10  OD474971064 ± 2.0nm＞90%@1064nm10±2.0nmOD4@200 to 1049nm,1079 to 1200nmφ25.0mm
1546-10  OD476011546 ± 2.0nm＞90%@1546nm10±2.0nmOD4@200 to 1531nm,1561 to 1800nmφ25.0mm
1550-10  OD475251550 ± 2.0nm＞90%@1550nm10±2.0nmOD4@200 to 1535nm,1565 to 1800nmφ25.0mm
1550-50 OD475271550 ±5.0nm45nm＞95%50±5.0nmOD4@200 to 1510nm,1595 to 1800nmφ25.0mm
1552-10  OD476001552 ± 2.0nm＞90%@1550nm10±2.0nmOD4@200 to 1537nm,1567 to 1800nmφ25.0mm


双带通滤光片

品名
型号中心波长
透过率半高宽带阻尺寸
377-30_479.5-27 OD67167

377±2.0nm, 470.5±2.0nm

＞93%@365 to 389nm; ＞93%@467 to 490 Band1:30±2.0nm; Band2:27±2.0nmOD6@300 to 352nm,397nm,400 to 457nm,459nm,497nm, 501 to 900nm;  OD3@ 900 to 1100nmφ25.0mm
430-44_531-47 OD67168442±2.0nm, 531±2.0nm ＞93%@411 to 449nm; ＞93%@511 to 551nmBand1:44±2.0nm; Band2:47±2.0nmOD6@300 to 393nm,466 to 495nm, 565 to 925nm;  OD2@ 250 to 300nm, 925 to 1100nmφ25.0mm
442-26_543-108 OD67662430±2.0nm, 543±2.0nm＞93%@432 to 452nm; ＞93%@493  to 593nmBand1:26±2.0nm; Band2:108±2.0nmOD6@350 to 422nm,462 to 478nm, 605 to 700nmφ25.0mm
469.5-41_622.5-47 OD67120469.5±2.0nm, 622.5±2.0nm＞93%@452 to 487nm; ＞93%@602  to 643nmBand1:41±2.0nm; Band2:47±2.0nmOD6@250 to 435nm,497 to 585nm, 655 to 900nm;OD3@900 to 1100nmφ25.0mm
471-24_552.5-19 OD67172471±2.0nm, 552.5±2.0nm＞93%@462 to 480nm; ＞93%@546  to 559nmBand1:24±2.0nm; Band2:19±2.0nmOD6@300 to 451nm,488nm,491 to 535nm, 537nm, 568nm,570 to 900nm;OD3@900 to 1100nmφ25.0mm
475-37_638-24 OD67108475±2.0nm, 638±2.0nm＞93%@459 to 491nm; ＞93%@629  to 647nmBand1:37±2.0nm; Band2:24±2.0nmOD6@370 to 415nm,507 to 618nm, 659 to 780nmφ25.0mm
475-24_581.5-23 OD67176482±2.0nm, 581.5±2.0nm＞93%@473 to 491nm; ＞93%@573  to 590nmBand1:24±2.0nm; Band2:23±2.0nmOD6@300 to 461nm,500nm,502 to 560nm, 601nm, 602 to 900nm; OD3@900 to 1100nmφ25.0mm
486-20_564-24 OD67093486±4.0nm,564±4.0nm＞90%@478 to 494nm; ＞90%@554  to 574nmBand1:20 Nominal ; Band2:24 NominalOD6@200 to 466.5nm,505.9 to 540.5nm, 588 to 10nmφ25.0mm
501.5-23_571.5-23 OD67111501.5±2.0nm, 571.5±2.0nm＞93%@493 to 510nm; ＞93%@563  to 580nmBand1:23±2.0nm; Band2:23±2.0nmOD6@300 to 480nm,520 to 544nm, 590 to 800nm,800 to 1000nmφ25.0mm
511.5-29_630.5-99 OD67173511.5±2.0nm, 630.5±3.0nm＞93%@499 to 524nm; ＞93%@584  to 677nmBand1:29±2.0nm; Band2:99nm NominalOD6@275 to 485nm,538 to 567nm, 725 to 925nm; OD5@925 to 1025nm; OD2@1025 to 1100nmφ25.0mm
521-36_638-88 OD67092521±4.0nm, 638±4.0nm＞90%@506 to 536nm; ＞90%@598  to 678nmBand1:36nm Nominal; Band2:88nm NominalOD6@200 to 492.9nm,549.8 to 581.1nm, 696.7 to 900nmφ25.0mm
522.5-36_628-39 OD67177522.5±2.0nm, 628±3.0nm＞93%@507 to 538nm; ＞93%@611  to 645nmBand1:36nm Nominal; Band2:39nm NominalOD6@250 to 499nm,546 to 602nm, 656 to 800nm; OD5@800 to 924nmφ25.0mm
524-24_673-20 OD67129524±2.0nm, 673±3.0nm＞93%@514 to 534nm; ＞93%@666  to 680nmBand1:24±2.0nm; Band2:20nm NominalOD6@350 to 498nm,541 to 655nm, 692 to 900nmφ25.0mm
535-24_633-24 OD67179535±2.0nm, 633±3.0nm＞93%@526 to 544nm; ＞93%@624  to 642nmBand1:24±2.0nm ; Band2:24nm NominalOD6@300 to 515nm,555nm,556 to 661nm, 653nm, 654 to 900nm; OD3@900 to 1100nmφ25.0mm
537-25_624-57 OD67109537±2.0nm, 624±3.0nm＞93%@527 to 547nm; ＞93%@599  to 649nmBand1:25±2.0nm; Band2:57nm NominalOD6@300 to 518nm,556 to 589nm, 665 to 800nm; OD4@800 to 1000nm; OD2@1000 to 1100nmφ25.0mm
538-69_695-67 OD67118538±2.0nm, 695±3.0nm＞93%@507 to 568nm; ＞93%@667 to 723nmBand1:69±2.0nm; Band2:67nm NominalOD6@330 to 497nm,585 to 654nm, 745 to 800nm; OD3@250 to 330nm;800 to 1100nmφ25.0mm
577-31_690-58 OD67180577±2.0nm, 690±3.0nm＞93%@564 to 590nm; ＞93%@664  to 716nmBand1:31±2.0nm; Band2:58nm NominalOD6@250 to 555nm,599 to 650nm,725to 925nmφ25.0mm



三/四/五带通滤光片

品名
型号中心波长
透过率半高宽带阻尺寸
384-28_492.5-19_581-24 OD67184

384±2.0nm, 492.5±2.0nm,581±2.0nm

＞93%@373 to 395nm; ＞93%@486 to 499nm; ＞93%@572 to 590nmBand1:28±2.0nm; Band2:19±2.0nm; Band3:34±2.0nm;OD6@300 to 362nm,406 to 475 nm, 476nm, 508nm, 501 to 599nm,600nm,602 to 900nm;  OD3@ 900 to 1100nmφ25.0mm
438-24_513-24_572-22 OD67190

438±2.0nm, 513±2.0nm,572±2.0nm

＞93%@429 to 447nm; ＞93%@504 to 522nm; ＞93%@564 to 580nmBand1:24±2.0nm; Band2:24±2.0nm; Band3:22±2.0nm;OD6@300 to 417nm,456nm, 458 to 493 nm, 495nm, 530nm, 532 to 556nm,589nm,592 to 900nm;  OD3@ 900 to 1100nmφ25.0mm
457-29_530-27_628-36 OD67185

457±2.0nm, 530±2.0nm,628±3.0nm

＞93%@445 to 469nm; ＞93%@519 to 541nm; ＞93%@613 to 643nmBand1:29±2.0nm; Band2:27±2.0nm; Band3:36nm NominalOD6@300 to 436nm, 479 to 508 nm,  553 to 598nm,660 to 850nm;  OD2@ 250 to 300nm,850 to 1100nmφ25.0mm
475-27_544-15_632-64 OD67191

475±2.0nm, 544±2.0nm,632±3.0nm

＞93%@465 to 485nm; ＞93%@539 to 549nm; ＞93%@603 to 661nmBand1:27±2.0nm; Band2:15±2.0nm; Band3:64nm NominalOD6@300 to 452nm, 496 to 528 nm, 558 to 585nm,679 to 800nmφ25.0mm
390-28_474-28_547-24_634-20 OD67194

390±2.0nm, 474±2.0nm,547±2.0nm, 634±3.0nm

＞90%@379 to 401nm; ＞93%@463 to 485nm; ＞93%@538 to 556nm;＞93%@627 to 641nmBand1:28±2.0nm; Band2:28±2.0nm;Band3:24±2.0nm;  Band4:20nm NominalOD6@300 to 369nm, 408nm,409 to 453 nm,  455nm, 493nm, 495 to 525nm,529nm,568nm,570 to 615nm,617nm,651nm,653 to 900nm;  OD3@ 900 to 1100nmφ25.0mm
431-30_509.5-16_592-30_681-38 OD67195

431±2.0nm, 509.5±2.0nm,592±2.0nm, 681±3.0nm

＞93%@418 to 444nm; ＞93%@579 to 605nm; ＞93%@665 to 697nm;＞93%@504 to 515nmBand1:30±2.0nm; Band2:16±2.0nm;Band3:30±2.0nm;  Band4:38nm NominalOD6@300 to 406nm, 456 to 492nm,527 to 568nm,617 to 652nm,710 to 800nmφ25.0mm
436.5-49_521-22_604-30_704-54_810-85 OD67205

436.5±2.0nm, 521±3.0nm,604±3.0nm,704±4.0nm,810±4.0nm

＞90%@414 to 459nm; ＞90%@512 to 530nm; ＞90%@591 to 617nm;＞90%@680 to 728nm; ＞90%@771 to 849nm;Band1:49nm Nominal; Band2:22nm Nominal; Band3:30nm Nominal;Band4:54nm Nominal;Band5:85nm NominalOD6@380 to 406nm, 467 to 504 nm,  539 to 582nm, 628 to 668nm, 742 to 756nm, 870 to 1050nm;  OD4@200 to 380nm;OD2@1050 to 1100nmφ25.0mm


上一篇：没有了！

下一篇：没有了！

发表评论：

评论记录：

未查询到任何数据！
成都易和神光科技有限公司
  • 营业执照：915101003941861930
  • 备案号码：蜀ICP备20022036号-2
  • 地址：成都市高新区紫荆南路56号1-4-15
联系我们
  • 电话：028-85126481
  • 邮箱：sales@divinelight.com.cn
  • Q  Q：392003164

二维码

扫一扫 手机访问

Copyright © 2014-2024 YiHeShenGuang All Rights Reserved.
返回顶部
